Steel Auto-Locking Static Locker

Description

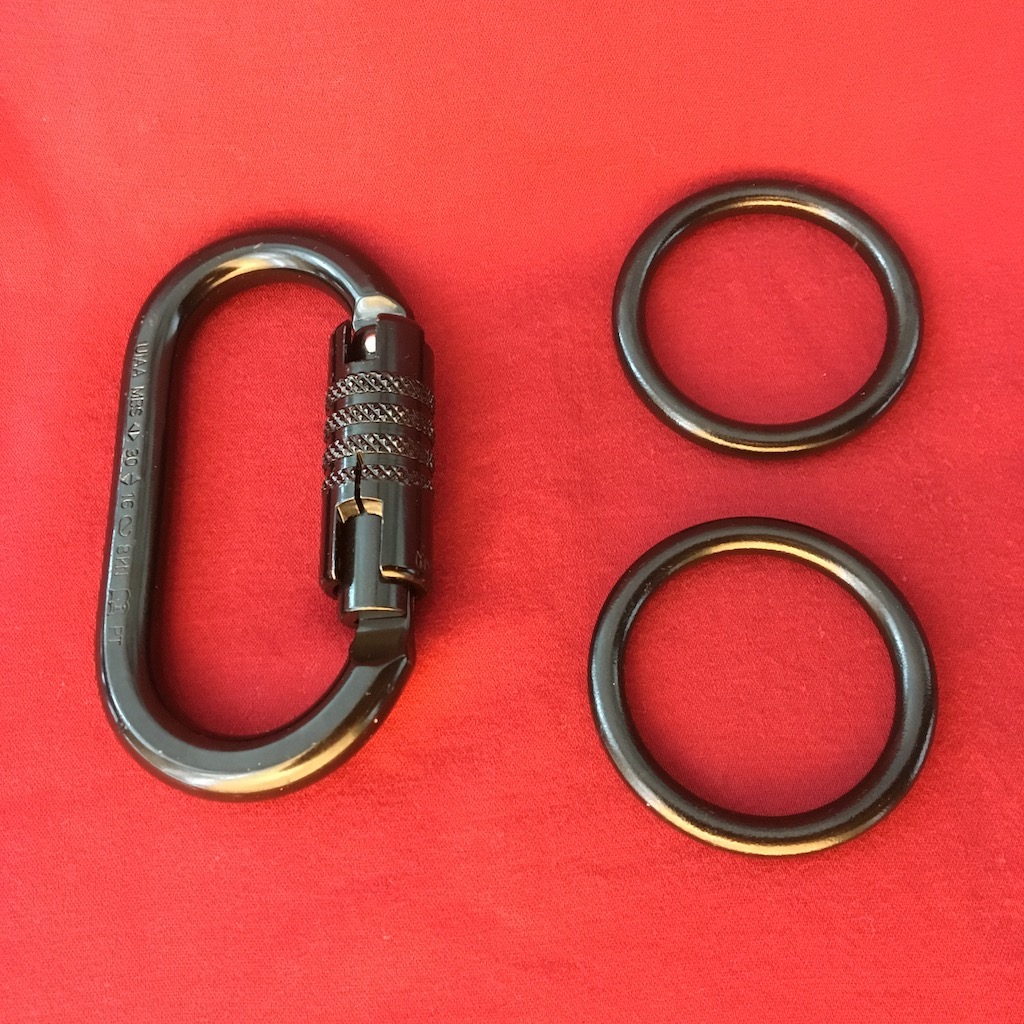

This all black steel static line locker is the ultimate in static line lockers.   Using a toothless, 30kN, triple auto-locking steel oval beaner and two forged rings, this static line locker is not only easy to use but beautiful to look at, and extremely strong.

The Oval autolocking toothless design makes it easy to clip and unclip and helps to reduce the risk of damage to your webbing.   The oval carabiner fits perfectly on the end of any pulley set.

Specifications

Black Steel Oval 30kN triple locker

• Minimum Breaking Strengths (locked & straight loading):  30kN
• Minimum Breaking Strengths (locked & cross loaded on gate):  16kN
• Minimum Breaking Strengths (unlocked):  8kN
• Gauge:  1.11cm (1/16″)
• Outer diameter: 11.1cm (4 3/8″)
• Inner diameter: 10cm (3 15/16″)
• Weight:  248g

DMM Forged Aluminum 34mm Ring (Green)

• Color: Green
• Minimum Breaking Strength (MBS):  30kN
• Working Load Limit (WLL): 6kN
• Weight: 48g
• Dimensions:
  • Inner Diameter – 34mm
  • Ring Guage – 12mm
• Docs

NOTE: Current Product Photo does not depict the green forged rings.

Small: 1 1/2″ 22.2kK (5000lbs)

• Color: Black
• 100% Proof Loaded: 16kN (3600lbs)
• Minimum tensile Strengths: 22kN (5500lbs)
• Inner diameter: 3.8cm (1 1/2″)
• Recommended usage: Static line locker (1 or 2 rings)
